Dial w. Hands, OMEGA 17'''

950 kr
Unit price per

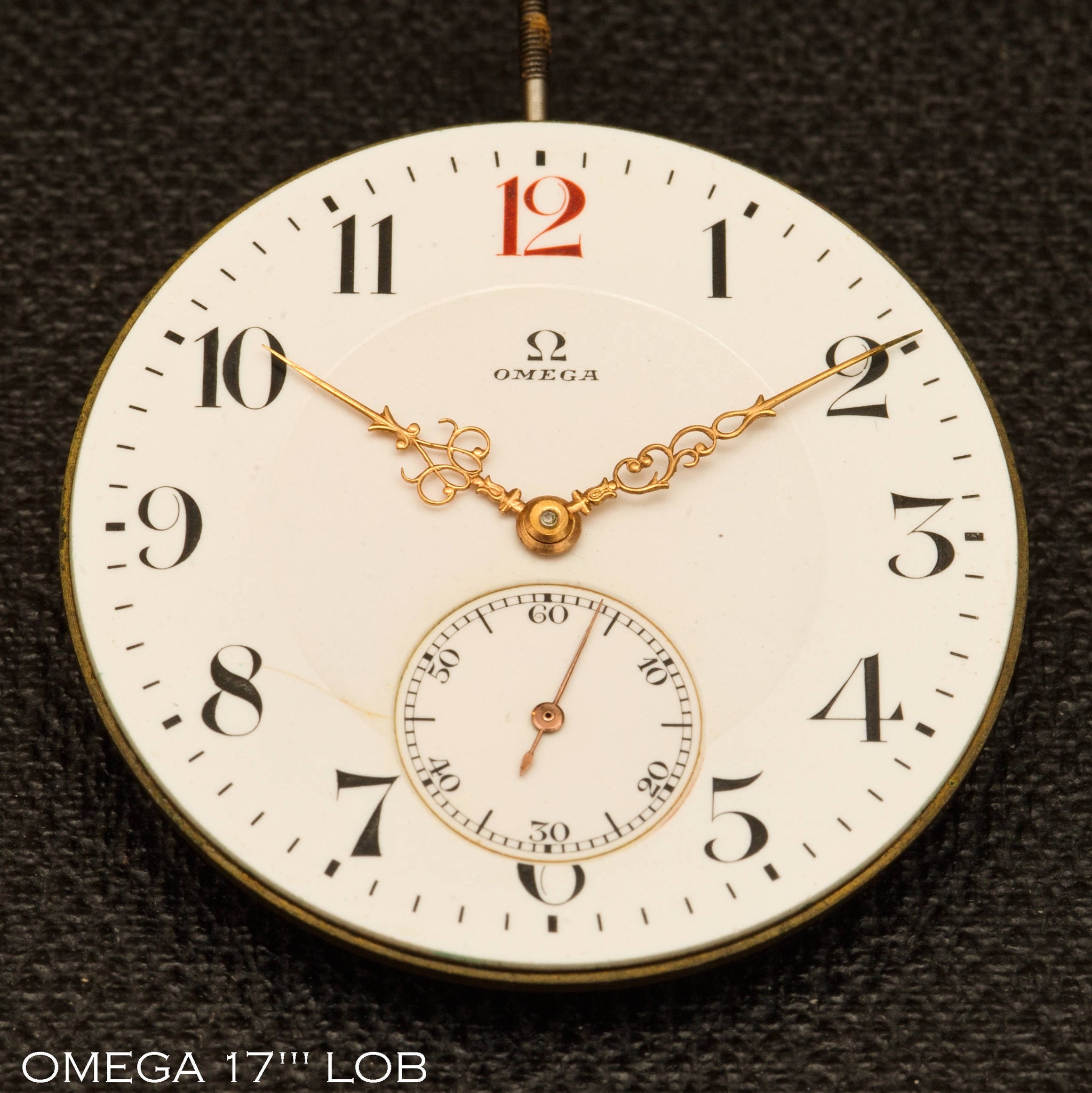

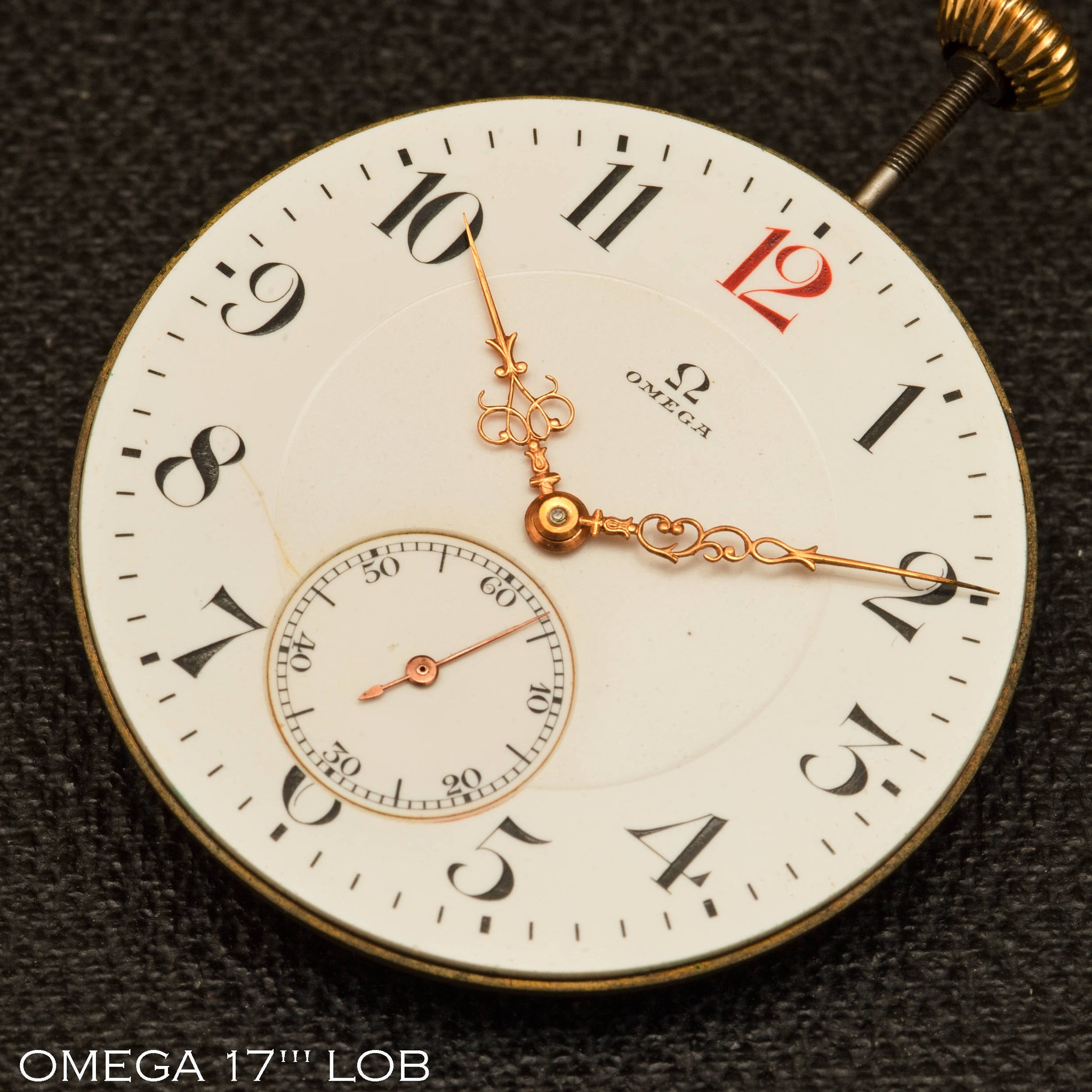

OMEGA original enamel dial & hands for the 17''' LOB/SAB movement. In very good pre-owned condition with one remark, a hairline between the sub second dial and "8" See pictures!

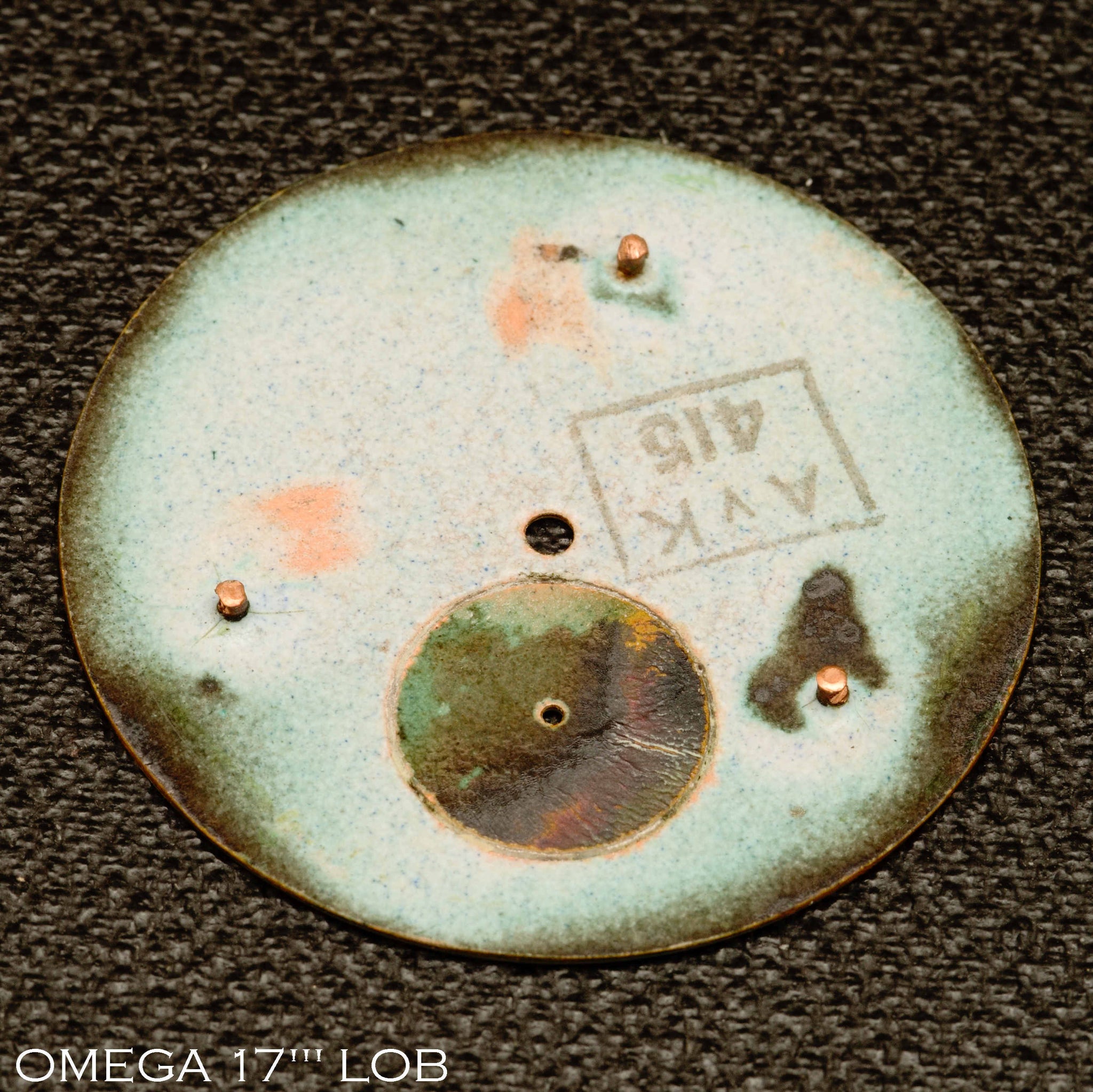

Signed on back: AVK 415
Total dial diameter: 42.7 mm.

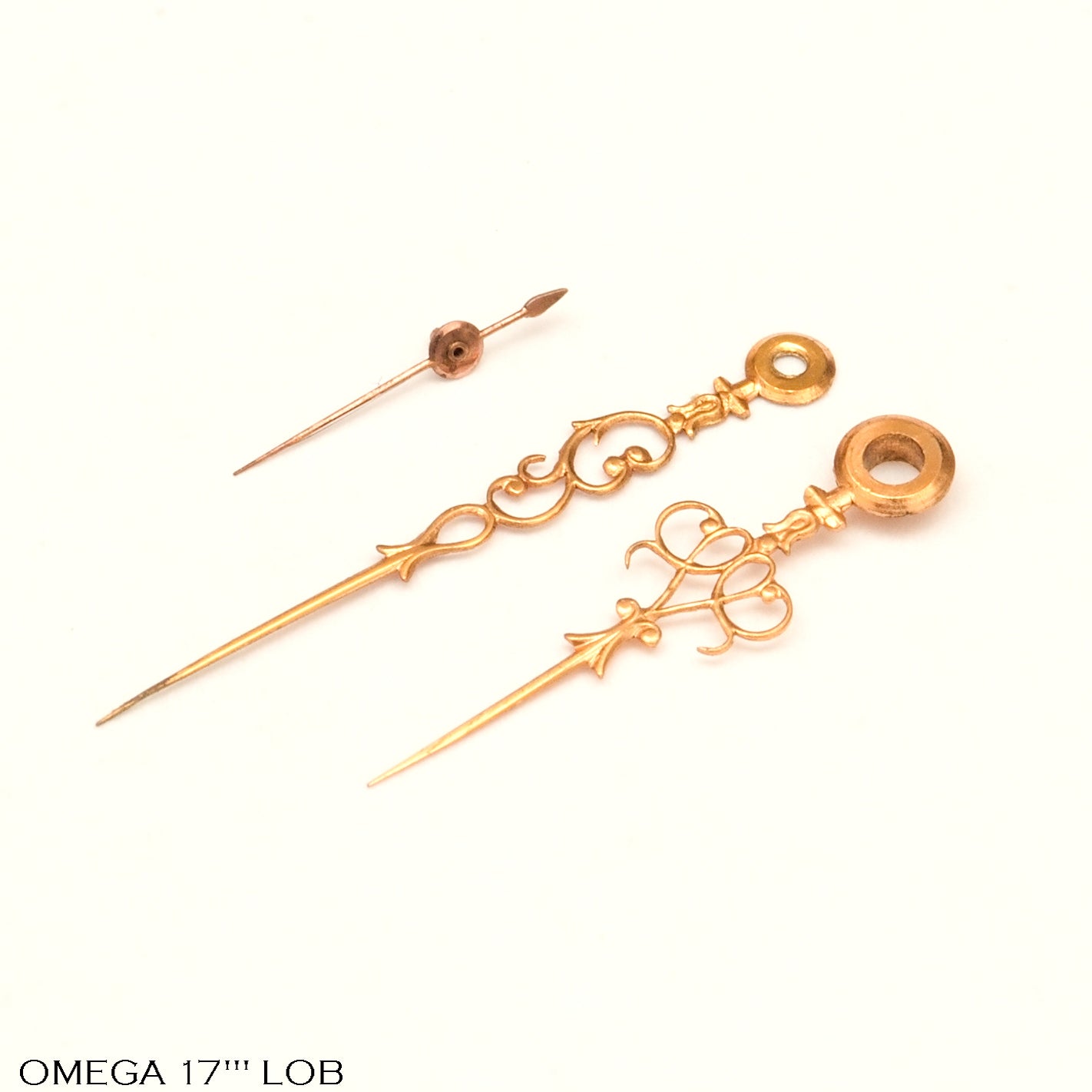

Hands fitting diameter:

Minute: 0.83 mm.
Hour: 1.48 mm.
Second: 0.22 mm.

Data: OMEGA 17'''LOB

15 jewels, open face caliber, sub second.
Size: 17''' 37.60 mm.
H: = 5.05 mm.
N: = 18.000 A/h.
Balance staff: DCN no: 40
Power reserve: -- h.
Mainspring: 2,00 x 14.5 - 0,20 - 400 (Measured and verified)

Versions: L = Lépine, O = Omega caliber, S = Savonette, A - C = Quality/Grade, NN = new negative wind/setting mechanism.

Grades:

A: 7 jewels, flat hairspring, compensating balance.
B: 15 jewels, Breguet hairspring, compensating balance.
C: 15 - 19 jewels, regulator adjuster with screw or snail-star wheel, 7-8 collets.

How to identify the OMEGA 17''' LOB:

The pallet cock is fixed with one screw.
Total diameter of the crown wheel is: 9.90 mm.
Total diameter of the ratchet wheel is: 13.50 mm.
Total diameter of the barrel is: 12.50 mm.
Balance staff height: 4.56 mm.

Versions:

17'''LOA: 7 jewels, flat hairspring. 1898 - 1906
17'''LOB: 15 jewels, Breguet hairpspring. 1898 - 1932
17'''LOC: 15-19 jewels, Breguet hairspring, regulator, geneva stopwork.
17'''BULL: 21 jewels, Chronometre.
