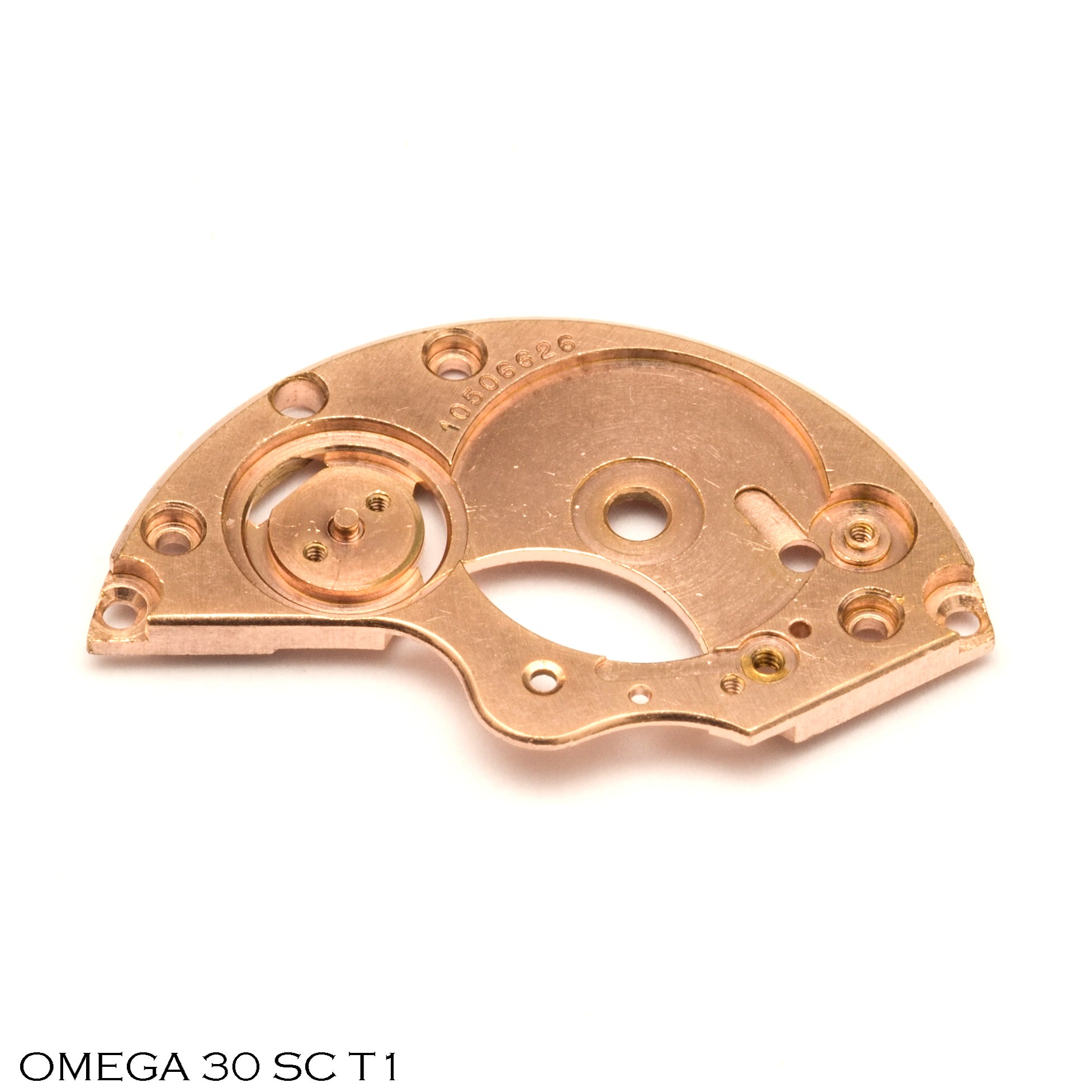

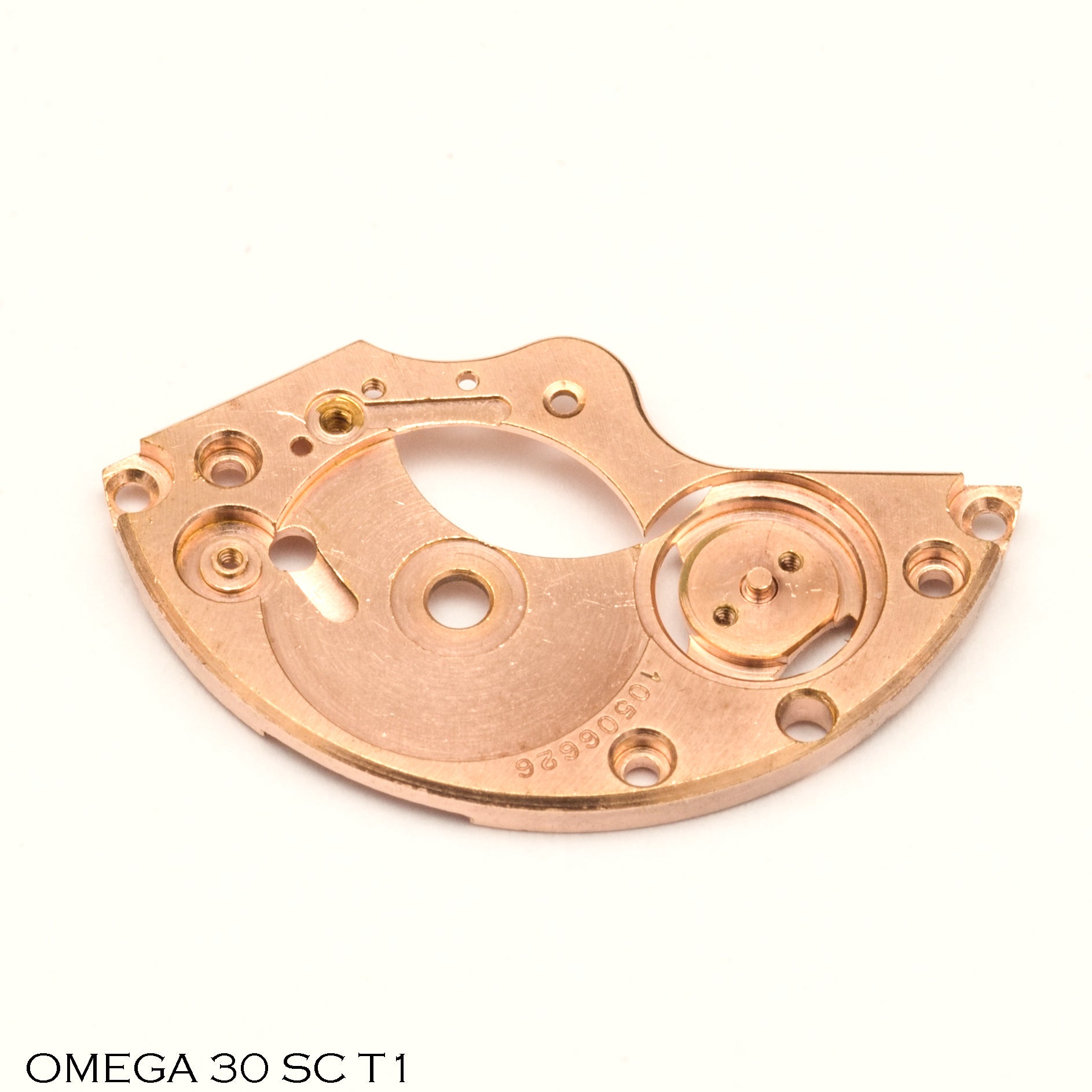

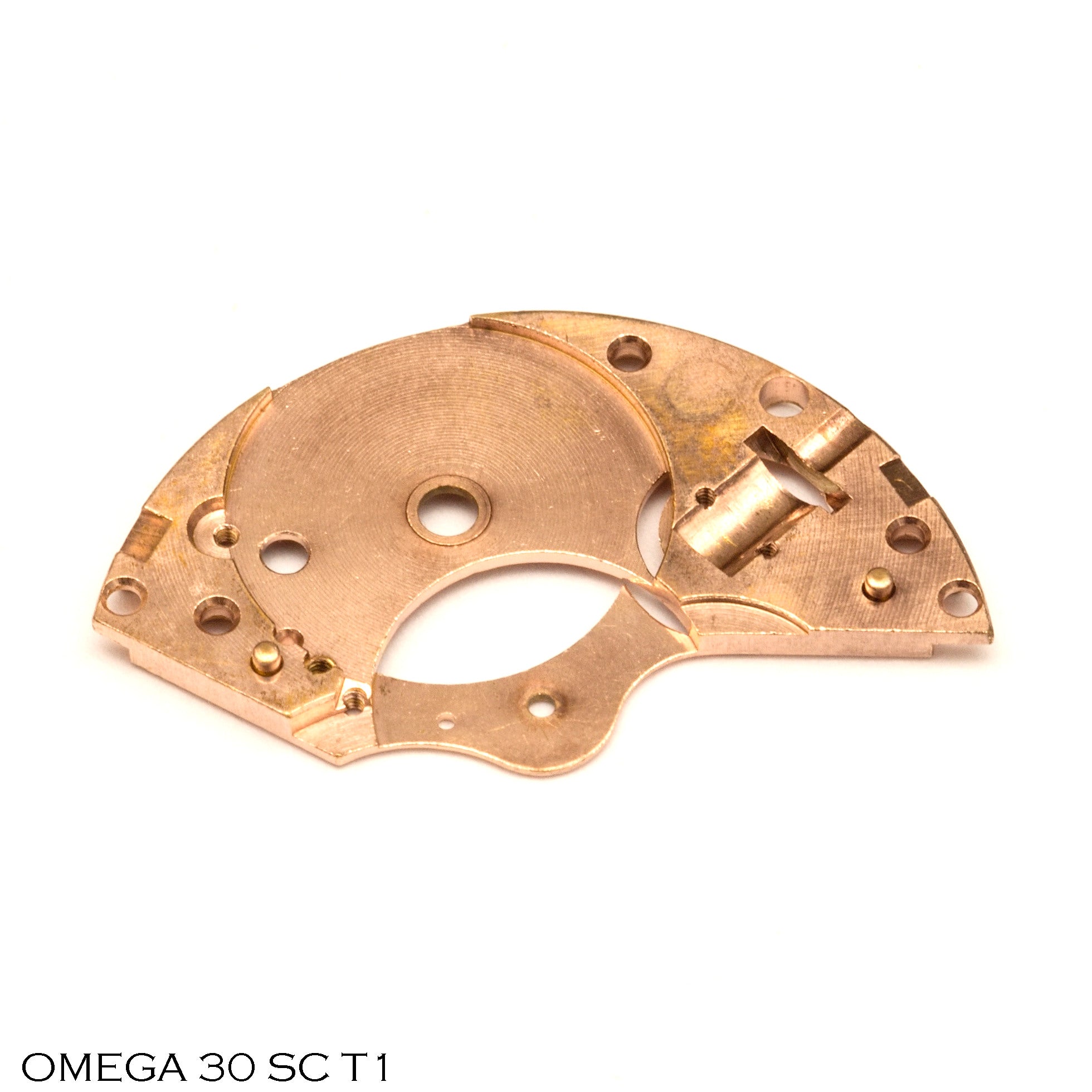

OMEGA 30 SC T1-1001; Barrel bridge, No: 10 506 626
Genuine rare Omega barrel bridge / Pont de barillet for the legendary 30 mm movement family. This specific part from an exclusive batch and are perfectly suited for a high grade restoration project.
- Omega part number: 1001 (Barrel bridge).
- Condiotion, Pre-owned, very good vintage condition.
- Finish: Beatiful, intact original gilt plating.
- Compatible calibers: 30SCT1, 30SCT2, 30SCT2PC
- Manufacturing number: 10 506 626
- Quality Assurance: Fully inspected, evaluated and approved by a WOSTEP-certified watchmaker.
- Note: As with most vintage parts, minor wear may be present on the bearing surface/pivot hole for the maispring barrel arbor and centre wheel. Adjustments might be needed!
Worldwide tracked and secured shipping from Sweden.
Versions with sub second:
- 30: 15 jewels, bi-metallic compensation balance no shock protection.
- 30T1: 15 jewels, bi-metallic compensation balance, no shock protection.
- 30T2: 15 jewels, bi metallic compensation balance, no shock protection.
- 30T2PC: 15 jewels, incabloc, monometallic balance.
- 30T2RG: 17 jewels, chronometre, no shock protection.
- 260: = 30T2PC from 1949, rose gold plated movement.
- 261: 17 jewels, antimagnetic.
- 262: = 30T2RG from 1949.
- 265: 15 jewels, antimagnetic.
- 266: 17 jewels, antimagnetic.
- 267: 17 jewels, antimagnetic, bewelled main plate.
- 268: 17 jewels, antimagnetic, ring balance, Breguet hairspring.
- 269: 17 jewels, antimagnetic, ring balance, flat hairspring.
Versions with center second:
- 30SC: 16 jewels, bi-metallic comp. balance, no shock protection, c-sec.
- 30SCT1: 16 jewels, bi-metallic comp. balance, no shock protection, c-sec.
- 30SCT2: 16 jewels, bi-metallic comp. balance, no shock protection, c- sec.
- 30SCT2PC: 17 jewels, incabloc, monometallic balance.
- 30SCT2RG: 17 jewels, chronometre, no shock protection.
- 280: = 30SCT2PC from 1949.
- 281: = 30SCT2RG from 1949.
- 283: 17 jewels, antimagnetic.
- 284: 17 jewels, antimagnetic, bewelled main plate.
- 285: 17 jewels, ring balance, Breguet hairspring.
- 286: 17 jewels, ring balance, flat hairspring.
